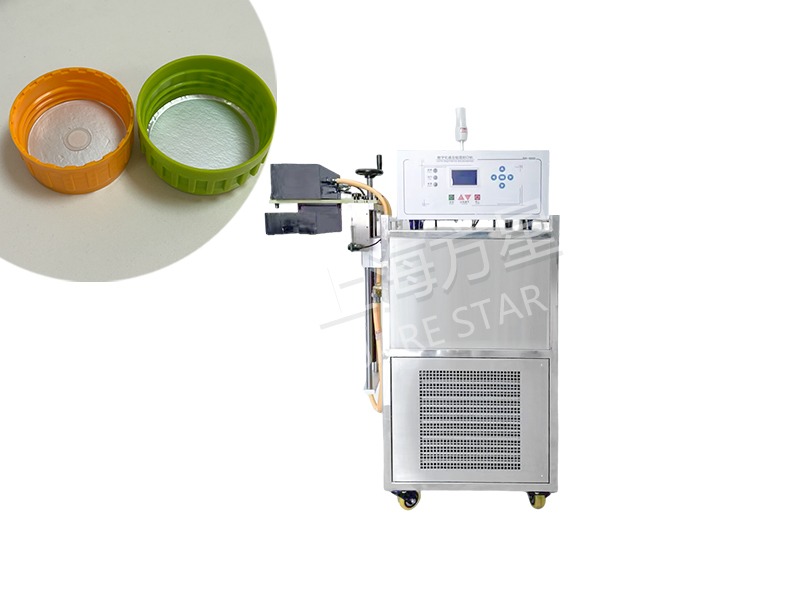

SR-5000 Digital Fully Automatic Aluminum Foil Sealing Machine

Advantages of digital aluminum foil sealing machine:

Digital circuits feature extremely high stability and reliability. Traditional sealing machines adopt an analog circuit design, which generally suffers from poor stability and a large number of components.

The parameters of analog circuits are mostly composed of RC circuits, which are greatly affected by temperature. After long-term use, the precision of components will gradually decline, leading to operating point drift and circuit board failures.

In contrast, all operating points of digital circuits are set by software, and they will not change over time or with temperature variations. This means their stability and reliability are superior to those of analog circuits.

Therefore, digital circuits have become the development trend of modern aluminum foil sealing machines.

The main functional features of SR-5000 digital electromagnetic induction aluminum foil sealing machine are:

1. A brand new intelligent design, the host adopts FPGA chip+microcontroller combined with independently developed FPGA algorithm, Let the sealing machine enter the dual core era. Realize multi-threaded high-speed operation, large screen display, rich information, and easy maintenance maintain.
2. The brand new saddle shaped induction head patented design can rotate 0-90 degrees, with faster sealing speed and better sealing effect,Wide sealing range.
3. Multiple protection functions include over current, over voltage, under voltage protection, host inverter circuit self check, and resonant circuit self check, high temperature alarm and shutdown of sensing head, monitoring of water temperature and pressure.
4. The cooling system has been upgraded, and the water cooling system adopts a fully sealed intelligent water tank to isolate dust and upgrade to high power.The water pump and rubber hose ensure the efficient and trouble free operation of the cooling system for a long time.
5. The main circuit is designed to be fully sealed, dust-proof, moisture-proof, and corrosion-resistant. It has the characteristics of low failure rate and long service life.
6. The whole machine is made of 304 stainless steel material, which meets GMP requirements.
7. Anti clogging bottle alarm shutdown function to prevent production accidents caused by excessive heating after bottle blockage.
8. Sensor head styles (flat or tunnel) can be designed according to customer sample bottles, supporting various bottle mouth sealing.
9. External aluminum foil remover can be equipped according to customer requirements (no built-in software, only external connection)
